Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum

Name: Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-2000
Price: 1.00 USD
Availability: InStock

브랜드 이름:	HanWei
모델 번호:	HW-DZJS-2000
모크:	1 세트
가격:	USD / Set
지불 조건:	T/T
공급 능력:	2000 세트 / 년

자세한 정보

제품 설명

자세한 정보

Place of Origin:

Shenzhen. China

인증:

레이저 파워:

2000W

용접 재료:

강철 / 스테인리스 강철 / 알루미늄

전기 이력 전압:

220V 50Hz / 60Hz

레이저 출력 모드:

4 모드 (CW, PWM, QCW, 아르곤)

용접 빔 크기:

0-5mm 조정 가능(0-10mm 옵션)

시준 초점 거리:

60mm

초점 거리:

150 밀리미터

용접 두께:

4mm 스테인레스 스틸 완전 관통

용접 매개변수 저장:

30 가지 다른 용접 매개 변수를 저장

와이어 공급:

0.8&1.0&1.2&1.6mm 와이어 공급(2.0mm 와이어 공급 옵션)

포장 세부 사항:

수출 플라이우드 포장재

공급 능력:

2000 세트 / 년

제품 설명

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum Description:

As a cutting-edge and revolutionary welding tool, the compact single-motor welding head is engineered with a user-centric approach. It adeptly addresses complex welding requirements by balancing welding process productivity with ergonomic design for prolonged use, enabling welders to execute projects with heightened efficiency and accuracy.

Featuring a lightweight, sleek, and ergonomically optimized structure, the welding head ensures a comfortable and secure grip. It seamlessly adapts to diverse welding tasks in various work environments—ranging from large-scale industrial production floors to outdoor on-site repair scenarios—consistently delivering superior results.

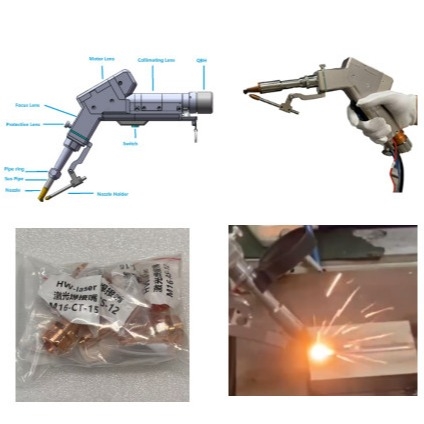

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum 0

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Positioning: Red Guide Beam
Laser Beam Size: 0~5mm Adjustable
Fiber Cable: 10m Standard (15 / 20m Option)
Gas: Argon / Nitrogen
Fiber Connector: QBH
Handheld Laser Gun Weight: 0.7kg

This high-performance fiber laser device incorporates an integrated QBH fiber coupler, delivering premium-grade functionality. Its laser beam diameter is infinitely adjustable within a 0–5mm range, complemented by a red aiming beam for pinpoint positioning accuracy. Weighing only 0.7kg, the welding head stands out for its ultra-lightweight design, prioritizing user comfort through ergonomic engineering.

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

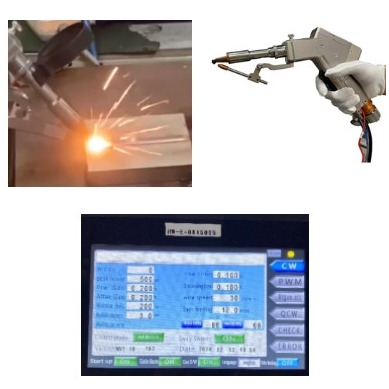

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum 1

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum Application Advantages:

The HanWei HW-DZJS-2000 portable welding unit showcases exceptional performance across diverse applications. Its mobility offers unparalleled convenience for on-site welding operations, enabling flexible use in nearly any environment. The cordless design streamlines workflow, facilitating rapid completion of welding projects. This product has emerged as a cornerstone in construction, manufacturing, and repair sectors, serving as a vital tool for professionals requiring reliable, high-performance welding solutions.

For thin metal sheets including stainless steel, carbon steel, and aluminum, the handheld single-vibration welding tool presents a superior alternative to conventional argon arc and electric welding methods. The welding torch features a lightweight, compact, and ergonomically optimized design for comfortable maneuvering, integrated with a safety lock and touch-sensitive indicator light. Its user-centric engineering minimizes operator fatigue while delivering high-speed, high-quality welds. Notably, the process yields invisible welding marks and no color distortion, eliminating the need for post-weld polishing. Equipped with robust anti-interference capabilities, it incorporates a proprietary control system to ensure stable and precise performance.

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum Packing:

One Fiber Laser Welding Head
One Controller
Two Protective Lens
A set of Connection Cables and Line
Seven kinds of nozzles
One 15v Power Supply
One Wire feeding device
One User Manual
One Safety Switch Clip
One Touch Screen Monitor

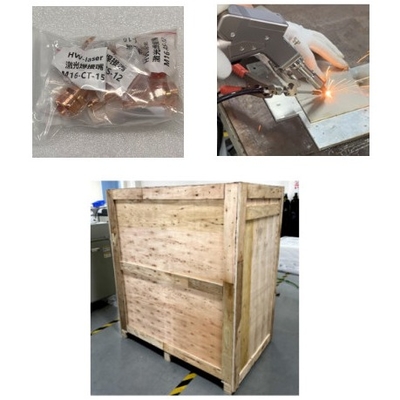

Intelligent Handheld Laser Welding Machine for Carbon Steel / Stainless Steel and Aluminum 2

Shen Zhen HanWei Laser Enterprise and Feature:

The HanWei HW-DZJS-2000 portable welding system exemplifies cutting-edge performance across industrial applications. Its unparalleled mobility revolutionizes on-site welding operations, enabling agile deployment in even the most challenging environments. The cordless architecture streamlines operational efficiency, facilitating rapid project completion with minimal setup. Positioned as an industry cornerstone, this solution has become indispensable for professionals in construction, manufacturing, and maintenance sectors, delivering reliable, high-performance welding outcomes.

For thin-gauge metal substrates—including stainless steel, carbon steel, and aluminum—the handheld single-vibration welding apparatus offers a paradigm shift from traditional argon arc and stick welding techniques. The welding torch integrates a lightweight, compact form factor with ergonomic optimization for prolonged use, featuring a safety interlock mechanism and tactile indicator lighting. This user-centric design mitigates operator fatigue while enabling high-speed, precision welding with zero visible seam marks or thermal discoloration—eliminating post-weld finishing requirements entirely. Equipped with advanced anti-interference algorithms and a proprietary control protocol, the system ensures consistent performance across varying working conditions.
