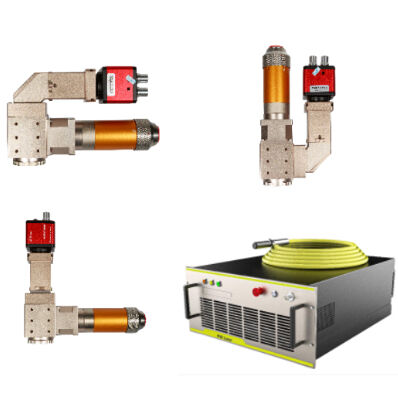

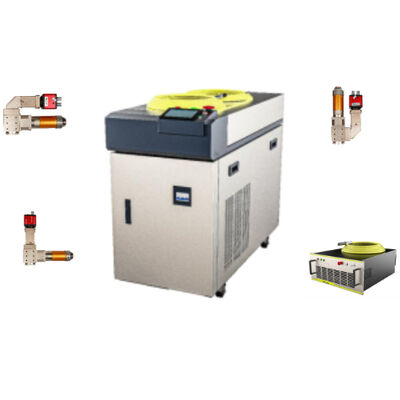

HW Functional Replacement-Oriented QCW Welding Machine for YAG Welding Scenarios

브랜드 이름:	HanWei
모델 번호:	HW-QCW
모크:	1세트
가격:	USD / Set
지불 조건:	티/티
공급 능력:	2000 세트 / 년

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 선전

인증:

레이저 파워:

150W/300W

소비전력:

2kW/2.5kW

기계 크기:

665*450*300 mm

기계 무게:

22kg/28kg

냉각방식:

공기 냉각

파장:

1070nm ± 10%

전력 안정성:

≤ ± 1%

펄스폭:

0.5-50

피크 전력:

1500와트/3000와트

펄스 에너지:

15J/30J

빈도:

100 Hz/2kHz

입력 전압:

AC220V 50/60Hz

포장 세부 사항:

수출 합판 포장

공급 능력:

2000 세트 / 년

제품 설명

HW Functional Replacement-Oriented QCW Welding Machine for YAG Welding Scenarios

The quasi-continuous wave (QCW) fiber laser is capable of delivering concentrated energy peaks over a relatively extended pulse period, which endows it with unique advantages in industrial welding. This output characteristic is highly suitable for welding processes that require stable molten pool control, such as local fusion welding and continuous weld seam joining. By setting pulse parameters appropriately, laser energy can act on the welding area with high precision, avoiding excessive heat diffusion. As a result, the welding achieves uniform appearance and reliable joint strength, meeting the diverse needs of metal processing.

During the development phase, this QCW laser welding machine was designed with reference to the requirements of some YAG welding applications, with its energy output mode and control logic redesigned. Compared with traditional YAG equipment, its laser output is more easily adjustable and its working status is more stable, enabling it to undertake the welding tasks that were previously performed by YAG equipment in multiple scenarios. This solution allows users to gradually upgrade their equipment while maintaining the existing process routes, making the welding process more in line with the efficiency and consistency requirements of modern industry.

Key Features

Welding Light Source Solution Based on Long Pulse Duration and High Instantaneous Power Output
Functional Replacement Design for YAG Welding Equipment Application Scenarios
Realization of Low-Maintenance Operation Through System Structure Optimization
Self-developed Technical System for Optical Path Distribution and Timing Management

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

Applications

At the core control level, this welding machine adopts a fully independent technical architecture, covering key modules such as optical path distribution, energy regulation and output timing management. The system can realize refined coordination of laser output, ensuring consistent energy distribution under different processing cycles. Through the collaborative design of hardware and software, the equipment can adapt to various automated welding requirements, reserve sufficient space for subsequent process expansion and system upgrades, and enhance the overall adaptability of the machine in complex production environments.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is among the world’s rare enterprises boasting independent R&D capabilities for the complete hardware and software ecosystem of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product range mainly covers a variety of laser welding solutions and supporting laser welding control systems.

Since 2019, Shenzhen Hanwei Laser has committed itself to the independent R&D and innovation of laser welding machines, tapping into core strengths derived from its in-house R&D, design, and manufacturing competencies.
